Chartpak Pickett Template - 1170i Lavatory Planning

Item #:55476-1400
View Product Details
click image to zoom in
Chartpak Pickett Template - 1170i Lavatory Planning
Chartpak Pickett Template - 1170i Lavatory Planning

Save For Later

  • My Wishlist(s)

Product Details

Description:
Lavatory Planning Template
Mfg #:
1170I
No.
1170i

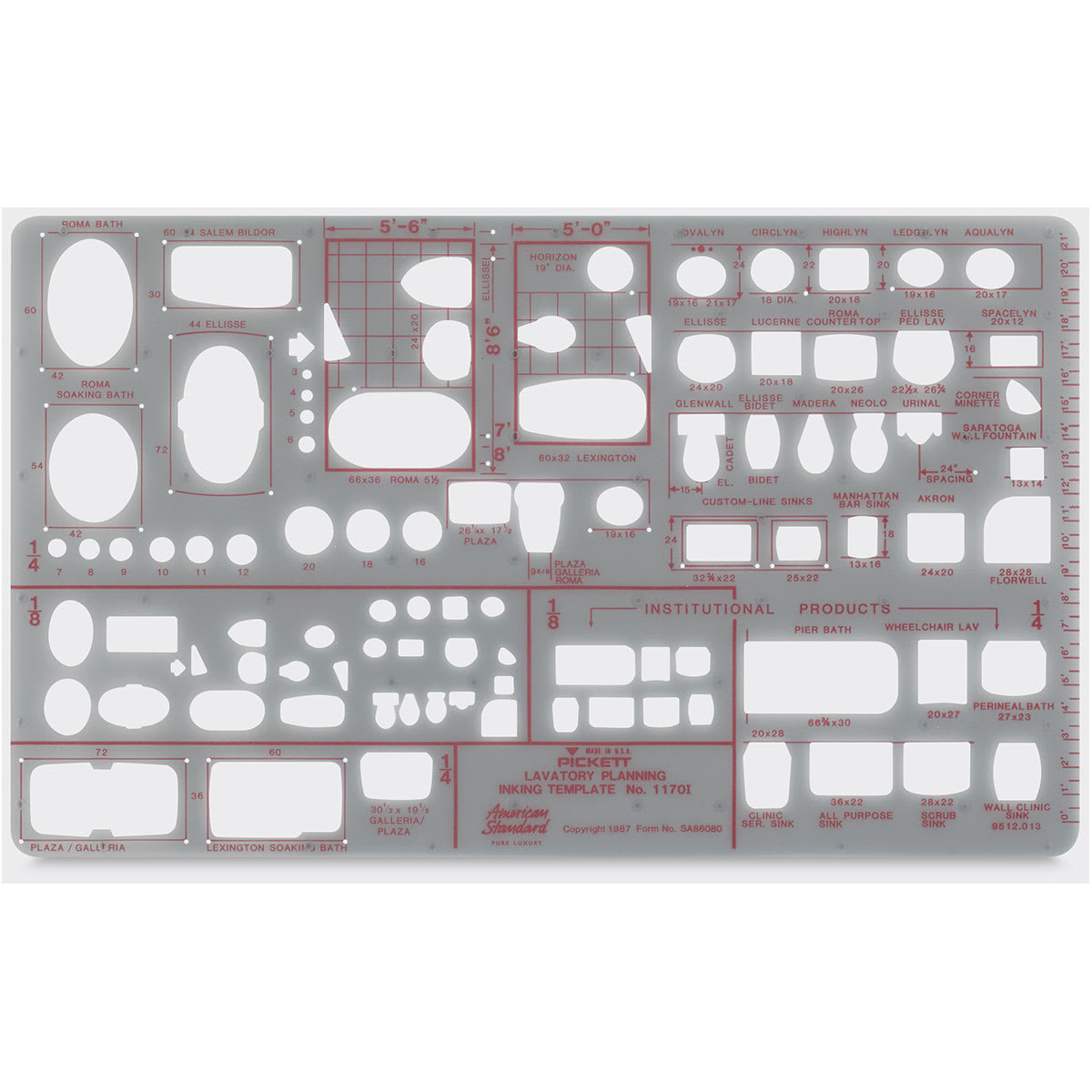

The 6'' × 9-3/4'' template includes all common American Standard brand of lavatory fixtures. 1/8'' and 1/4'' = 1 ft scale.

UPC Code: 014173152473

ASIN #: B0027ACJDC
